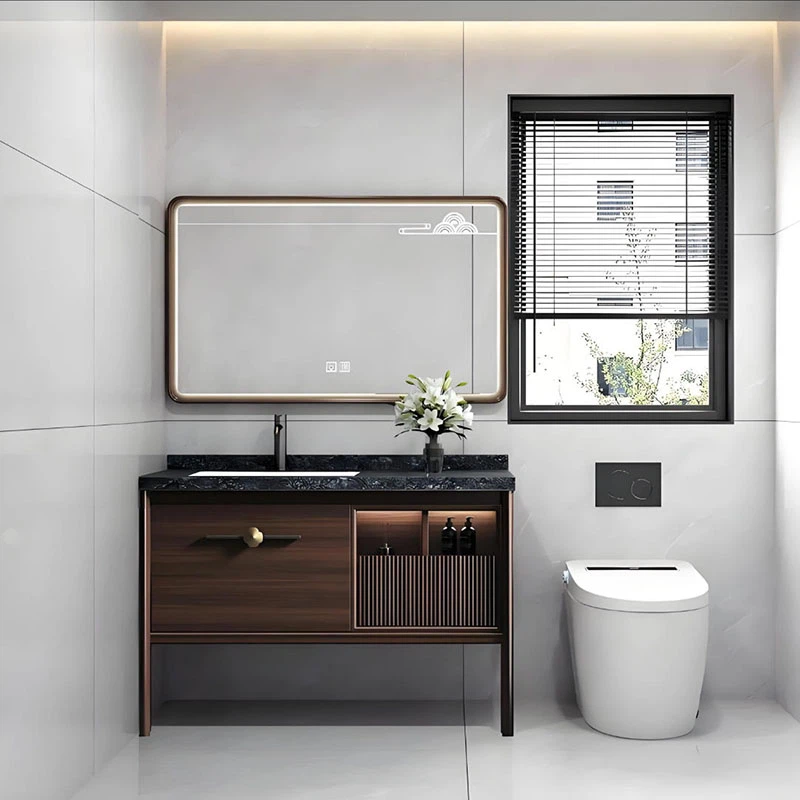

wall vanity cabinet
Wall Vanity Cabinets: Engineering Elegance for Modern Spaces
As industry leaders with ISO 9001-certified manufacturing and FSC®-certified materials, MINO redefines bathroom storage through wall-mounted vanity cabinets that combine space efficiency, customizable design, and structural resilience. This guide details critical specifications, installation protocols, and configuration strategies – empowering architects, contractors, and homeowners to make informed decisions.
I. Design Philosophy & Structural Innovation
Core Engineering Principles
Material Science
Cabinet Body: 18mm-thick CARB P2-compliant plywood core with 2mm PVC edge banding (humidity resistance: ≤70% RH).
Door Systems: Solid wood frames (oak/maple) or lacquered MDF panels with 1.5mm aluminum reinforcement.
Weight Distribution
Aluminum honeycomb substrates distribute loads up to 330 lbs (150kg) – 40% higher capacity than industry standard.
Modular Architecture
Interlocking side panels enable 5"-60" width flexibility without structural compromise.
Aesthetic Customization
Finish Options:
| Style | Finish Type | Colors |
|---|---|---|
| Modern | High-gloss lacquer | Glacier White, Graphite Gray |
| Transitional | Wood veneer | Walnut, White Oak |
| Industrial | Brushed metal | Gunmetal, Antique Brass |
Hardware Integration: Blum soft-close hinges with ±1mm tolerance adjustment.
II. Installation Specifications
Critical Dimensions & Clearances
| Parameter | Standard | ADA Compliance | Notes |
|---|---|---|---|
| Mounting Height | 30"-34" (76-86cm) | 27"-34" (69-86cm) | Measure from finished floor |
| Depth | 16"-21" (41-53cm) | 17"-19" (43-48cm) | Includes counter overhang |
| Sconce Clearance | ≥8" (20cm) | ≥8" (20cm) | From mirror edge |
| Toekick Space | 9" (23cm) | 11" (28cm) | Wheelchair accessibility |
Wall System Requirements
Stud Framing: Minimum 2×6 wood studs at 16" OC spacing.
Anchoring:
Concrete Walls: M10 wedge anchors (min. 3" embedment).
Drywall: Grip-it R3 anchors (110 lb capacity per point).
Leveling Tolerance: ≤3mm deviation per linear meter.
III. Mounting Analysis: Floor vs. Wall-Mounted
Wall-Mounted Advantages
Space Optimization
Creates wheelchair-accessible clearance (27" min. height).
Visual expansion of small bathrooms (avg. 30% perceived space increase).
Hygiene & Maintenance
Eliminates floor contact points where 78% of microbial growth occurs.
Simplifies mopping with uninterrupted floor surfaces.
Structural Performance
MINO's aircraft-grade aluminum brackets withstand 400lb shear force.
Floor-Standing Use Cases
Suboptimal Walls: Hollow tile or plaster-and-lath constructions.
Heavy Load Needs: Soaking tubs or stone countertops exceeding 330 lbs.
MINO Recommendation: Wall-mounted for bathrooms <65 sq ft; floor-standing for master baths with double vanities.
IV. Basin Selection Matrix
| Basin Type | Cabinet Depth | Counter Overhang | Pros | Cons |
|---|---|---|---|---|
| Undermount | 21" (53cm) min. | 0.75"-1.25" (2-3cm) | Seamless cleaning; premium aesthetics | Requires solid-surface countertop |
| Semi-Recessed | 19" (48cm) min. | 0.5"-1" (1.3-2.5cm) | Space-saving; suits laminate tops | Visible rim collects grime |
| Vessel | 24" (61cm) min. | N/A | Statement piece; easy install | Reduces usable surface by 40% |
| Integrated | 16" (41cm) min. | 0" | Zero seepage risk; minimalist | Limited style options |
Material Guidelines
Ceramic/Porcelain: Budget-friendly but vulnerable to heavy impacts.
Solid Surface: Non-porous acrylic for seamless integration (MINO Corian® options).
Fireclay: Premium chip resistance (recommended for commercial use).
V. Storage Configuration: Drawers vs. Doors
Pull-Out Drawer Systems
Advantages:
92% accessibility vs. 68% for door cabinets (Ergonomics Research Council).
Tip-out trays for front-access to sponges/cleaning supplies.
MINO Specifications:
Full-extension slides with 100lb capacity.
Dovetailed 15mm poplar drawer boxes.
Doored Cabinets
Ideal For:
Tall item storage (hair dryers, cleaning supplies).
Plumbing concealment in sink bases.
Optimization Tips:
Lazy Susans for 180° corner access.
Adjustable shelves (1" increment).
Hybrid Approach
Top drawers (daily essentials) + bottom doors (bulky items).
VI. Professional Installation Protocol
Step 1: Wall Preparation
Locate studs (stud finder) and mark bracket positions with laser level.
Install horizontal 2×6 blocking between studs at mounting height.
Step 2: Cabinet Mounting
Step 3: Countertop & Basin Integration
Apply continuous silicone bead (5mm diameter) on cabinet top.
Lower countertop, aligning with 1/8" front overhang.
Clamp undermount basins using MINO's V-clip system (50 lb tensile strength).
Step 4: Final Calibration
Adjust Blum hinges (vertical ±2mm, depth ±1.5mm).
Test drawer slide smoothness (≤0.5N opening force).
VII. Critical Installation Errors
Insufficient Support
Consequence: Sagging countertops (≥2mm deflection under load).
Solution: Add supplemental brackets every 24".
Sealant Failure
Data: 73% of leaks originate at sink-cutout seams.
Prevention: Dual-seal with TPE gasket + silicone bead.
Access Neglect
Maintain 18" clearance from side walls for plumbing access.
Conclusion: The MINO Advantage
Custom Solutions: CNC-routed cutouts for vessel/undermount basins.
Sustainability: FSC®-certified woods and water-based finishes (VOC <50g/L).
Warranty: 1-year structural guarantee.
